Nakamura-Tome – High Precision Multitasking Lathes
The company was established on December, 1960 – based out of Japan. They are one of the leading manufacturers and sales of CNC machine-tools and CNC multitasking machine tools.
Full support will be provided from certified multitasking machine professionals during the whole process. They support all the customers’ production systems with their extensive experience and know-how accumulated over the years.
Manav Marketing is the authorized dealer of Nakamura-Tome Machines in South India.
We provide excellent sales and service support with our certified service and application engineers.
Their product offerings include ATC Multitasking machines, Swing B-axis Turret machines, Multi Turret machines and single turret machines
Products

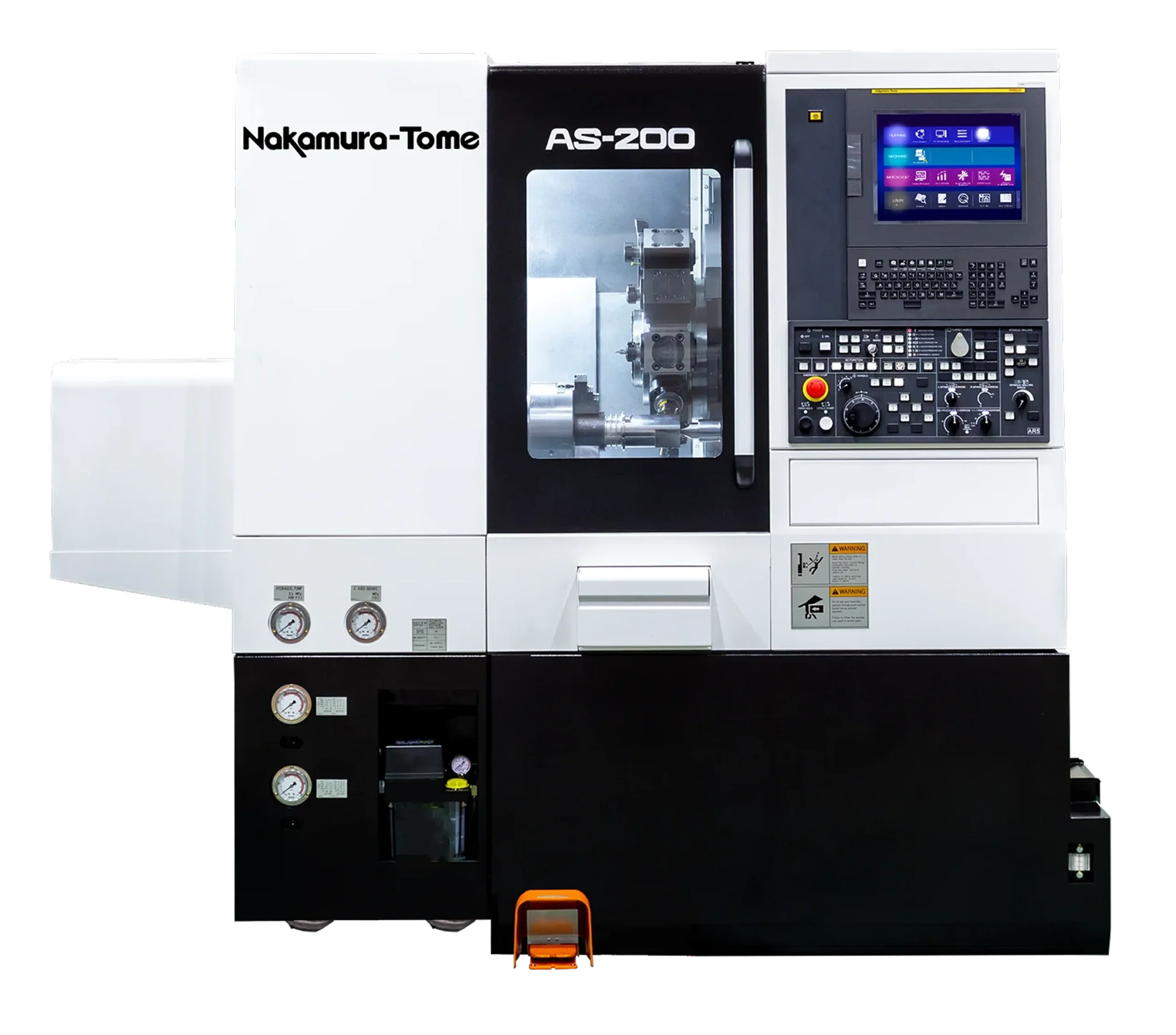

AS 200
High Power TurnMill Center
Y-axis, Milling Standard! Turning and Milling with full power!
Specifications:
- With Y Axis - Stroke: 82mm
- X-axis: 24m/min, Z-axis:36m/min, C-axis: 600min-1
- Turret: Max dodecagonal drum turret (Max.24station) or 15 station
- Number of milling tool (dodecagonal drum turret): 12
- Number of milling tool (Penta decagonal drum turret): 15

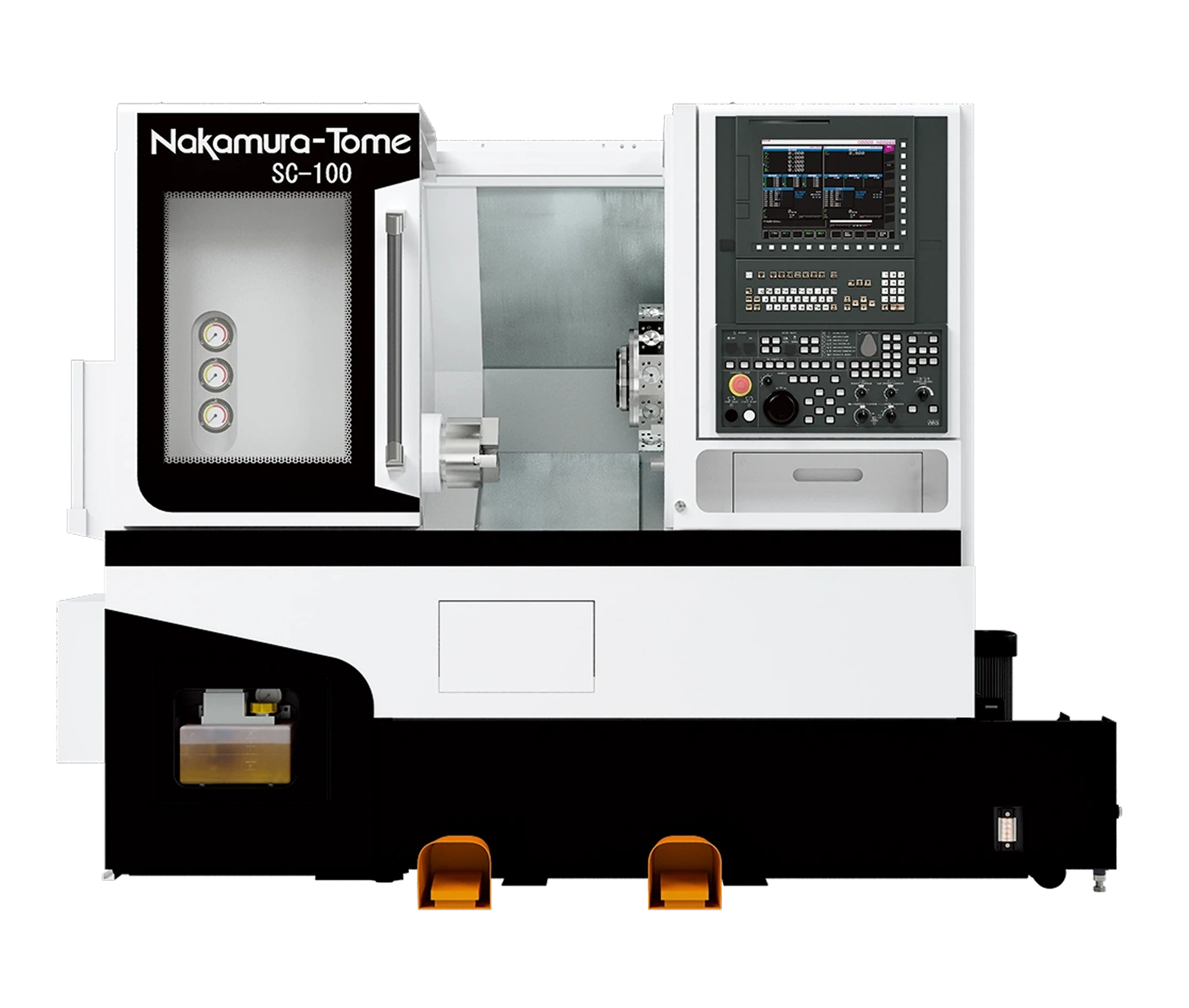

SC 100
High Rigidity Compact Multitasking Machine
High rigidity design. Parts Cather A with integrated parts conveyor is standard for Sub-Spindle specification.
Specifications:
- Z-axis travel: 400mm
- Y-axis Stroke: 80mm (±40mm)
- Floor Space: 2,523.6mm×1,825mm (Standard Specification)
- 7.1/2.2kW Milling motor
- Max Spindle Speed 6,000min-1
- 7.5/5.5kW Sub Spindle(op.)
SC 100X2
Fast, Rigid, Compact Multitasking Machine
SC 100X2 is a faster machine than SC 1OO with same accuracy and efficiency.
Specifications:
- Y-axis Stroke: 80mm (±40mm)
- 11/7.5 kW L-spindle motor
- 7.5/5.5 kW R-spindle motor
- 7.1/2.2kW Milling motor
- Max. speed 6,000min-1
- Turret Hand Unloading Gripper on Lower Turret

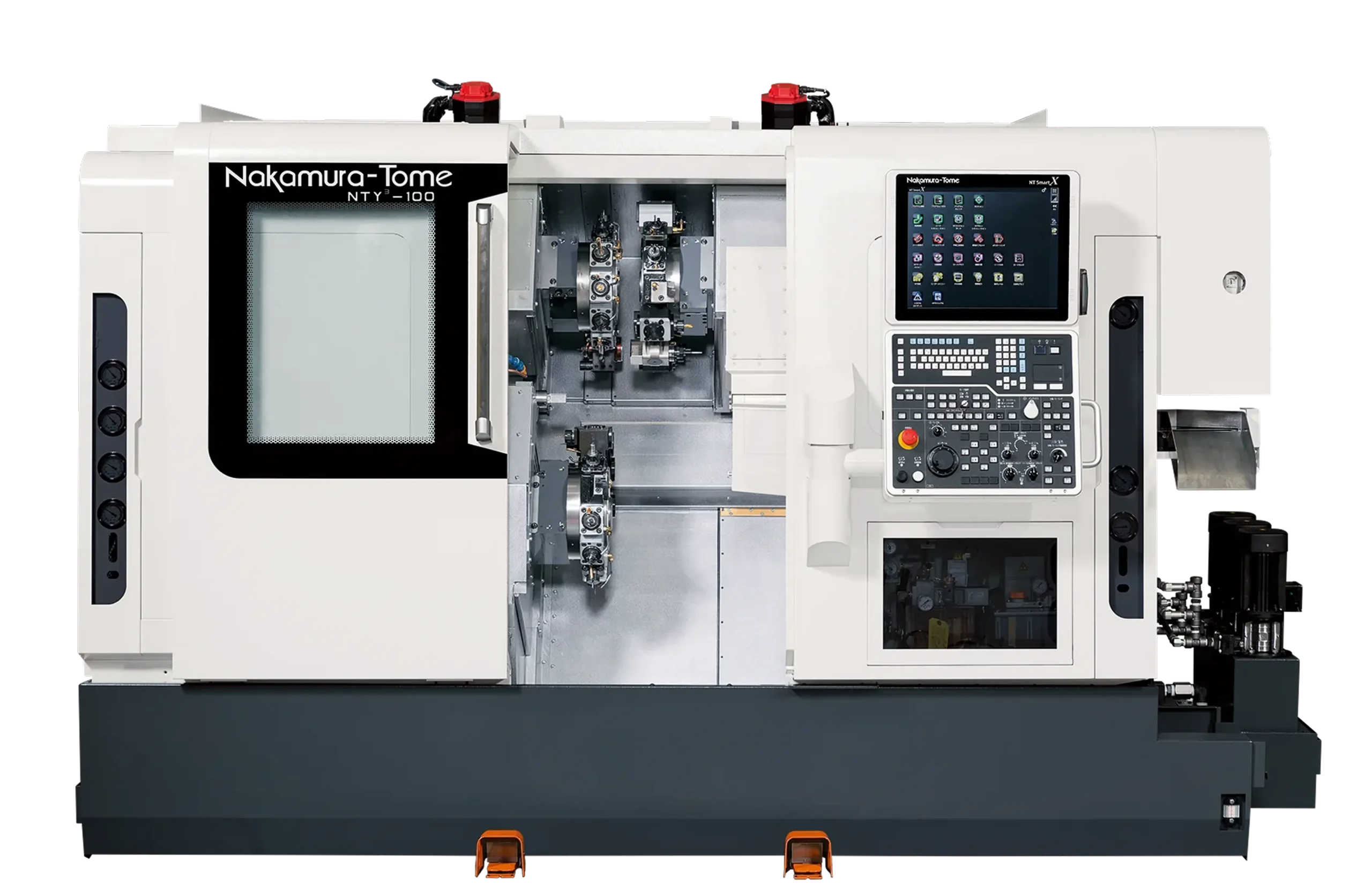

NTY3 - 100: Multi-Turret, Fast and Rigid Multitasking Machine
Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
Specifications
- Milling motor power is 7.1/2.2kW (Op. 5.5/2.2kW only for 12-st turret)
- Max. speed 6,000 min-1 (Op. 8,000min-1)

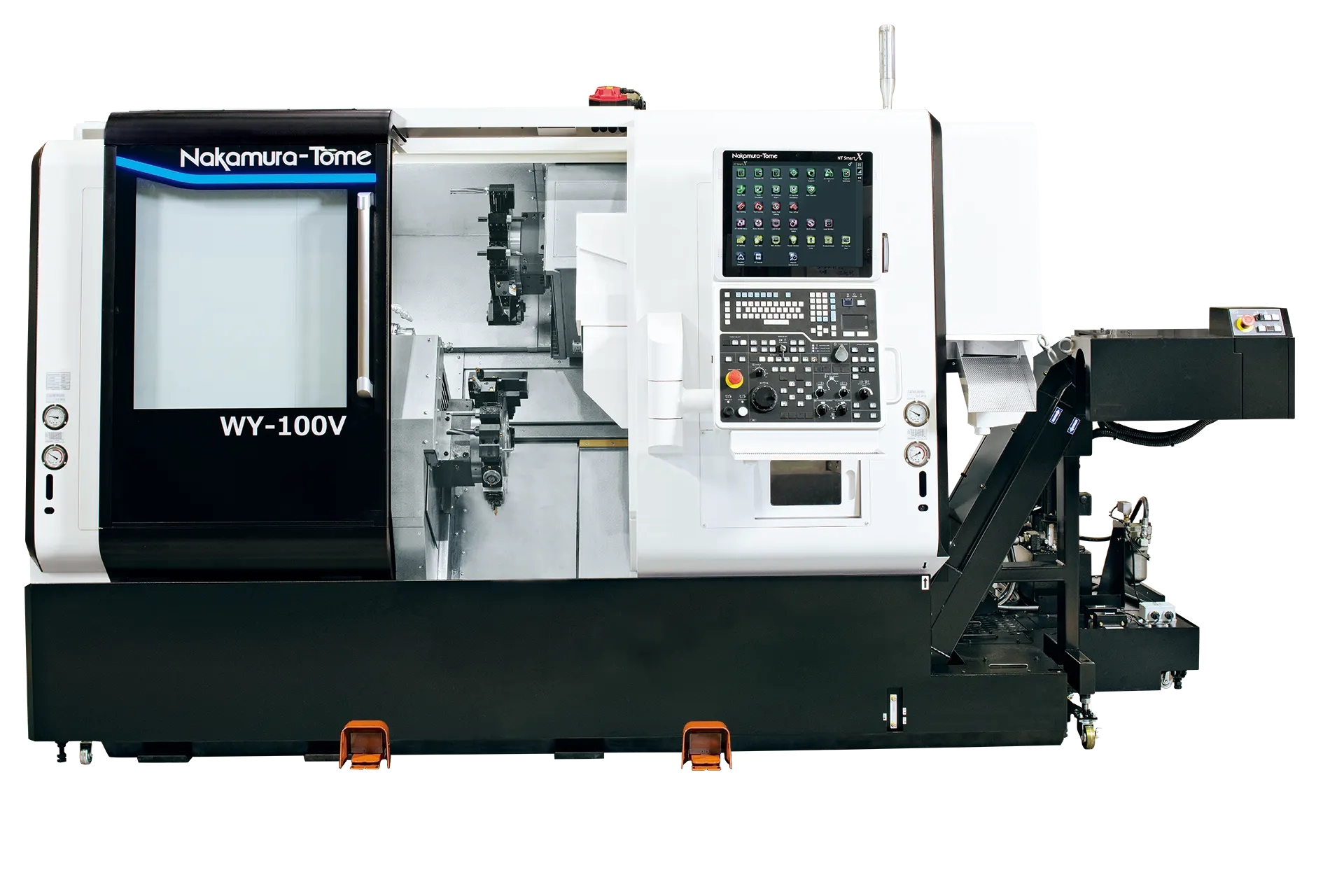

WY - 100V: Two Turret, Two Spindle Multitasking Machine
Specifications
- High Speed Indexing
- High Speed Spindle Synchronization
- Execution of multiple M codes within the same block
- High Speed Rigid Tapping
- Reduction of PC-G loading time
